Original price was: £1,700.00.£1,599.99Current price is: £1,599.99.

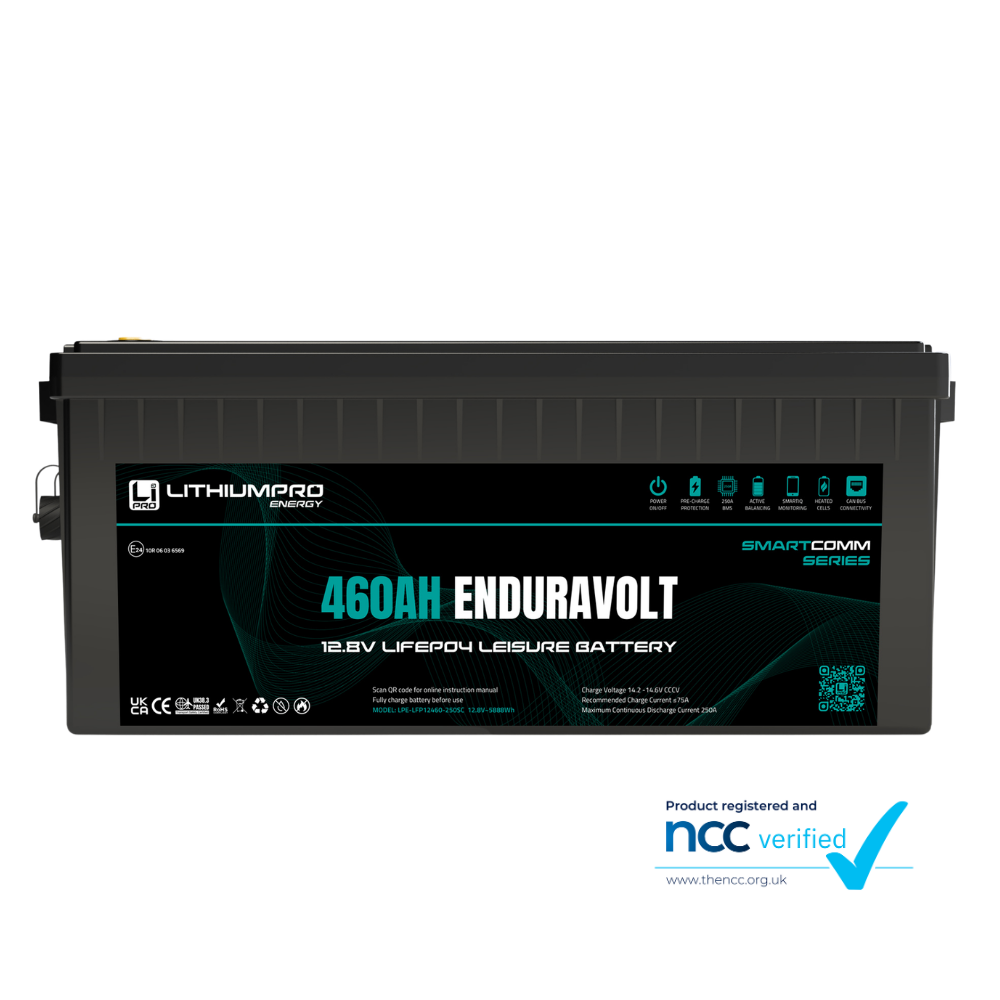

Introducing the all-new 12V 460Ah lithium battery from LithiumPro Energy – The ENDURAVOLT. This flagship model of the SMARTCOMM SERIES is the most advanced 460Ah lithium battery in the UK, boasting a near 6000Wh capacity. As our most powerful lithium battery yet, it is packed with industry-leading technology and features designed for adventurers with heavy power demands or those needing to stay off-grid for extended periods.
The SMARTCOMM SERIES from LithiumPro offers seamless Plug & Play integration via CANBus, allowing these batteries to communicate effortlessly with inverters, chargers, VictronGX, Ekrano, and any NMEA2000 compliant head unit, including CZONE, SIMARINE, and RAYMARINE. This enables the sharing of live system data for optimal performance and enhanced monitoring capabilities.
One of the unique features of the SMARTCOMM SERIES is the latest onboard safety mechanism, which protects the battery and connected electronics from dangerous arcs and sparks caused by powerful inrush currents when connecting to high-powered inverters. The Enduravolt 460Ah battery, equipped with an advanced proprietary 250A BMS, has the capability to run any household appliance up to 3200W when connected to a capable inverter, allowing you to operate a ‘GASLESS’ system with plenty of spare capacity.
Additionally, the new integrated battery isolation safety feature enables you to completely isolate your battery from its loads when maintenance is required, ensuring convenience and safety. Alternatively, you may wish to simply winterise your system at the touch of a button.
Download the datasheet here >
12v 460ah lithium battery – ENDURAVOLT
This state-of-the-art lithium battery is part of a new range from Lithium Pro Energy, offering market-leading features embedded within the battery as standard;
Download the datasheet here >
Here at LithiumPro Energy we pride ourselves on providing our customers with the very highest quality. All LithiumPro batteries have undergone rigorous testing procedures to ensure they comply fully with all UK & EU Legal Product Certification. Our batteries demonstrate compliance with UKCA, CE, ROHS, EMC & RED. The Prismatic cells used in the have obtained UL9540A certification, ensuring compliance with the stringent safety and performance criteria.
Lithium Iron Phosphate is classified as a Class 9 Hazardous material so in order to ship the battery via Rail, Road or Sea they have to adhere stringent handling, packaging and labelling requirements of the United Nations UN38.3 Certification.
SAFETY INSTRUCTIONS
• Before use read & follow instructions provided by the manufacturer.
• Do not expose the battery to direct sunlight or extreme temperatures.
• Do not disassemble the battery. Opening the battery will VOID Warranty Do not short circuit the battery.
• Store the battery in a well ventilated area.
• Only use a recommended (LiFePO4) Lithium charger Do not immerse the battery in water.
• Do not crush, incinerate or modify the battery.
• Recycle the battery according to local regulations.
| ELECTRICAL SPECIFICATIONS | |||
| Model | 175AH ARCTICXTREME V2 | 280AH SEATBASE | 460AH ENDURAVOLT |
| Nominal Voltage | 12.8V | ||
| Nominal Capacity | 175ah | 280ah | 460ah |
| Energy | 2240Wh | 3584Wh | 5888Wh |
| Active Balance Current | 1-5A | ||
| Self Discharge | <3% per month | ||
| Wireless Connectivity Protocol | Low Energy Bluetooth 5.0 | ||
| CANBus Connectivity | RJ45/RS485 x2 | ||
| Battery & BMS shutdown | Detachable MOS On/Off switch | On/Off switch | On/Off switch |
| MECHANICAL SPECIFICATIONS | |||
| Model | 175ah ARCTICXTRME V2 | 280ah SEATBASE | 460ah ENDURAVOLT |
| Dimensions (LxWxH) mm | 357x176x189 | 280x330x180 | 522x269x220 |
| Weight | 15kgs | 29kgs | 38kgs |
| Cycles | ≥4000 @ 80% DOD | ≥8000 @ 80% DOD | ≥8000 @ 80% DOD |
| IP Rating | IP66 | TBD | IP67 |
| Terminal Type | SAE Brass post with M8 threaded Insert | SAE Brass post with M8 threaded Insert | SAE Brass post with M8 threaded Insert |
| Cell – Prismatic (LiFePO4) | EVE LF173 | EVE LF280K | EVE LF230 |
| SAFETY & BMS PROTECTION SPECIFICATIONS | |||
| Model | 175 | 280 | 460 |
| Max Continuous Charge Current | 200A Recommended (75A) | 250A Recommended (75A) | |
| Max Continuous Discharge Current | 200A | 250A | |
| Peak Discharge | TBD | TBD | TBD |
| Discharge Protection cut-off | 10V | ||
| Over Charge Protection cut-off | 14.6V | ||
| Cell Balancing Voltage | 3.5V | ||
| Short Circuit Protection | 900<500uS | 900<500uS | 900<500uS |
| TEMPERATURE SPECIFICATIONS | |||
| Storage Temperature | -10 ~ 45ºC | ||
| Discharge Temperature | -10 ~ 45ºC | ||
| Charge Temperature (Heater Assisted) | -10 ~ 45ºC | ||
| RECOMMENDED (LIFEPO4) CHARGING SPECIFICATIONS | |
| Charging Voltage (CCCV) | 14.2v-14.6V |
| Float Voltage | 13.3-13.9V |
| Charging Current | ≤ 75A |
| Parallel & Series Connections | Max 4 (48V) |
12V 175AH CAD DRAWING – ARCTICXTREME V2
12V 280AH CAD DRAWING -280 SEATBASE
12V 460AH CAD DRAWING – 460 ENDURAVOLT
Using the latest Bluetooth 5 technology on your IOS or Android device you can pair to a SMARTIQ SERIES battery for real time data monitoring.
Whether your system is connected in SERIES or PARALLEL with our APP you can now monitor all your battery data on a single screen
The BMS Battery Management System controls all battery parameters, logging and logs the faults when it has had to intervene for safety and help you use your battery more efficiently.
No more guessing - Get live data showing the % State of Charge SOC of your battery and how long till your battery will be to fully charged or completely discharged
Its important to consider the following factors when choosing the right Lithium Battery for your application:
